HPL ACP Sheet Series

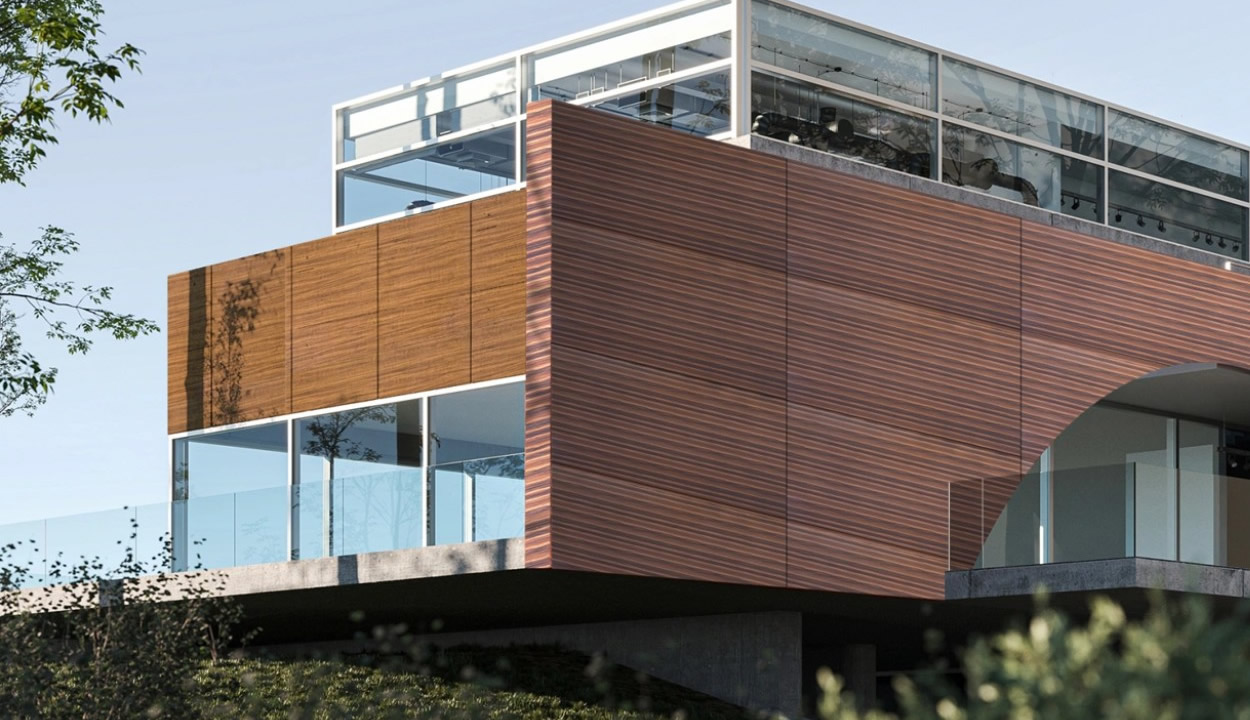

Elevate your space with Alurex for HPL ACP Sheet Series: Premium wooden exterior cladding. Outlasting traditional wood, it offers superior durability and aesthetics, ensuring enduring elegance for your exteriors.
Upgrade your spaces with Alurex HPL ACP Panels, designed to deliver the perfect balance of durability, style, and weather resistance. Combining the natural appeal of wood-inspired finishes with advanced aluminium composite technology, these panels are ideal for both interior and exterior applications.
Built with dual-layer PVDF coating and a strong polyethylene core, Alurex HPL ACPs provide excellent protection against water, dust, fungi, termites, and harsh climates. Available in a variety of colors, textures, and sizes, the panels are flexible, low-maintenance, and easy to install. Perfect for wall cladding, balconies, gates, ceilings, pergolas, railings, and decorative interiors, they offer long-lasting performance backed by a 15-year warranty.HPL ACP Series Sheets
-
HPL-81
Misty Grey
-
HPL 27
Golden Campino
-
HPL-76
Murky Sky
-
HPL-77
Zebrano Wood
-
HPL-02
American Oak
-
HPL-05
Elevated Wood
-
HPL-12
Fusion Walnut
-
HPL-13
Royal Teak
-
HPL-15
Novacentopine
-
HPL-16
Sapeli
-
HPL-17
Walnut Oak
-
HPL-18
Smoke Larch
-
HPL-19
Santosa
-
HPL-21
Volcanic Oak
-
HPL-22
Rugged Wood
-
HPL-23
Baltic Pine
-
HPL-25
Canadian Walnut
-
HPL-51
Funder Teak
-
HPL-26
Burma Ebony
-
HPL-71
Alaska Brown
-
HPL-72
Armani Grey
-
HPL-73
Turkish Stone
-
HPL-74
Corel Grey
-
HPL-75
Mineral Grey
Technical Specifications
| S No. | Items | City HPL |
|---|---|---|
| Technical Specifications of City HPL | ||
| 1 | Thickness of Composite Panel (mm) | 6 mm |
| 2 | Skin Thickness (mm) | 0.25 mm |
| 3 | Weight (Kg/sq.m) | 7.5 Kgm |
| 4 | LDPE Density (g/cm3) | 0.921 |
| 5 | Surface | ---- |
| 6 | Lacquering | PVDF |
| 7 | Gloss (Initial Value) | 30%-30% accord to Gardner |
| 8 | Hardness (Pencil Hardness) | 2H |
| 9 | Temperature Resistance | From -50°C to +80°C |
| 10 | UV Stability | Brilliant |
| Mechanical Properties of ACM | ||
| 11 | Tensile Strength (ASTM E-8) | 4.2 MPa |
| 12 | Yield Strength (ASTM E-8) | 4 MPa |
| 13 | Elongation (ASTM E-8) | 13% |
| 14 | Flexural Elasticity (ASTM C-393) | 4030 Kg/mm2 |
| 15 | Thermal Expansion (ASTM D-698) | 1.1 mm/M/50.C |
| Mechanical Properties of Alluminium Skin | ||
| 16 | Alluminium Alloy Grade | H 18 – 1100 |
| 17 | Yield Strength | 14 MPa |
| 18 | Modules of Elasticity (ASTM C-393) | 70,000 N/mm² |
| 19 | Bond Integrity (ASTM C-297) | 118 Kg/cm² |
| 20 | Deflection Temperature (ASTM D-698) | 110°C |
| Accoustical Properties | ||
| 21 | Sound Absorption Factor | 0.05 |
| 22 | Airborne Sound Insulation Index Rw (dB) | 26 |
| 23 | Loss Factor D | 0.0057 |
| General Properties | ||
| 24 | Gloss at 60° | 26 |
| 25 | Elongation (ASTM E-8) | ASO>=5% |
| 26 | Abrasion Resistance (ASTM D-968-81) | Doesn’t wear out through pours of sand or the surface of the coated panel |
| 27 | Film Hardness (Pencil Hardness) | 2H |
| 28 | Rigidity E-J (KN cm²/m) | 5900 |
| 29 | Crosshatch ASTM D 3359 | No Cracking |
| 30 | Flexibility ASTM D 4145 | 2T |
| 31 | Dry ASTM D-3359 Method 8 | No Change |
| 32 | Wet 37.8 °, 24hrs | No Change |
| 33 | Boiling Water 100°C, 20 min | No Change |
| Chemical Resistance | ||
| 34 | H2SO4 (ASTM D 1308) | No Change |
| 35 | Detergent (ASTM D 2248-73) | No Change |
| 36 | Oil Resistance | No Change |
| 37 | Dirt Resistance | No Change |
| Weather Ability | ||
| 38 | Color retention (ASTM DI 2244-89 max 5 units) | 4000hrs |
| 39 | Gloss retention (ASTM D 523-89 70%) | 4000hrs |
| 40 | Chalking (ASTM D-4214-89 max 8 units) | No chalking was seen 4000hrs |
| 41 | Salt Spray | No Change 3000hrs |
| 42 | Humidity (ASTM D-2247-87) | No Blister, No Cracking |
| 43 | Humidity (Thermal ASTM D-2244-65) | None to very few # blisters 100% |
| 44 | Condensing Humidity 54.4°C (ASTM 4585-87) | Rhx 54.4°C, 2500hrs |
|
|||
|---|---|---|---|
| Exterior / Interior | |||
| Grade | Panel | Top Coil | Bottom Coil |
| HPL-625 | 6 mm | 0.25 mm | 0.25 mm |
|
|||
|---|---|---|---|
| Top Coil (Two Coats) | 24μm -28μm | ||
| Bottom Coil | 7μm Service Coat | ||
